CNC stružnica SYIL L4

Stručnica za velike dele

12-postajalna servo revolverska glava (vključno s 4 držali za vrtalno orodje,
2 držaloma za čelno rezanje, 8 parov tlačnih orodij)
10-palčna votla hidravlična tričeljustna vpenjalna glava
Vreteno A2-8
Hidravlična konjička

Zahtevajte ponudbo

Processing Capacity

Chuck size:

10 inches

Max. swing diameter over bed:

ø630 mm

Max. swing diameter over carriage

ø330 mm

Max. workpiece length:

800 mm (1100 mm/ 1500mm)

Max. workpiece diameter

ø520 mm

Spindle

Max. speed:

3500 rpm

Spindle nose:

A2-8

Spindle bore diameter:

ø91 mm

Through spindle bore diameter:

ø75 mm

Spindle power:

15 kW

Tool Holder

Type:

Servo Turret

Tools:

12

Min. Tool to Tool:

0.2 s

Max. Tool to Tool:

0.5 s

Max tool shank size:

25x25 mm

Max tool shank diameter:

ø40 mm

Max. Live Tooling Speed:

5000 rpm

Live Tooling Model:

BMT55

Travels

X Rapid traverse:

30 m/min

Z Rapid traverse:

30 m/min

X Travels:

260+10 mm

Z Travels:

850mm (1150 mm/ 1550 mm)

Tail Stock

Tail Stock Rapid Traverse:

10 m/min

Sleeve taper:

MT5

Accuracy

Finish turning cylindrical accuracy:

IT6

Finish turning parts surface:

Ra0.4-1.6

Finished turning parts roundness:

≤0.003 mm

Position accuracy (Ｘ):

0.005 mm

Position accuracy (Z):

0.008 mm

Repeat accuracy (Ｘ):

0.002 mm

Repeat accuracy (Ｚ):

0.004 mm

Dimensions and Weight

Dimensions(LxWxH)

2500x1720x1740 mm

Weight

6200 kg/ 6800 kg/ 7220 kg

Paketi stružnega centra SYIL L4 - specifikacije

Idealno za okolja z veliko količino in veliko proizvodnjo

Zahtevajte ponudbo

SYIL L Siemens

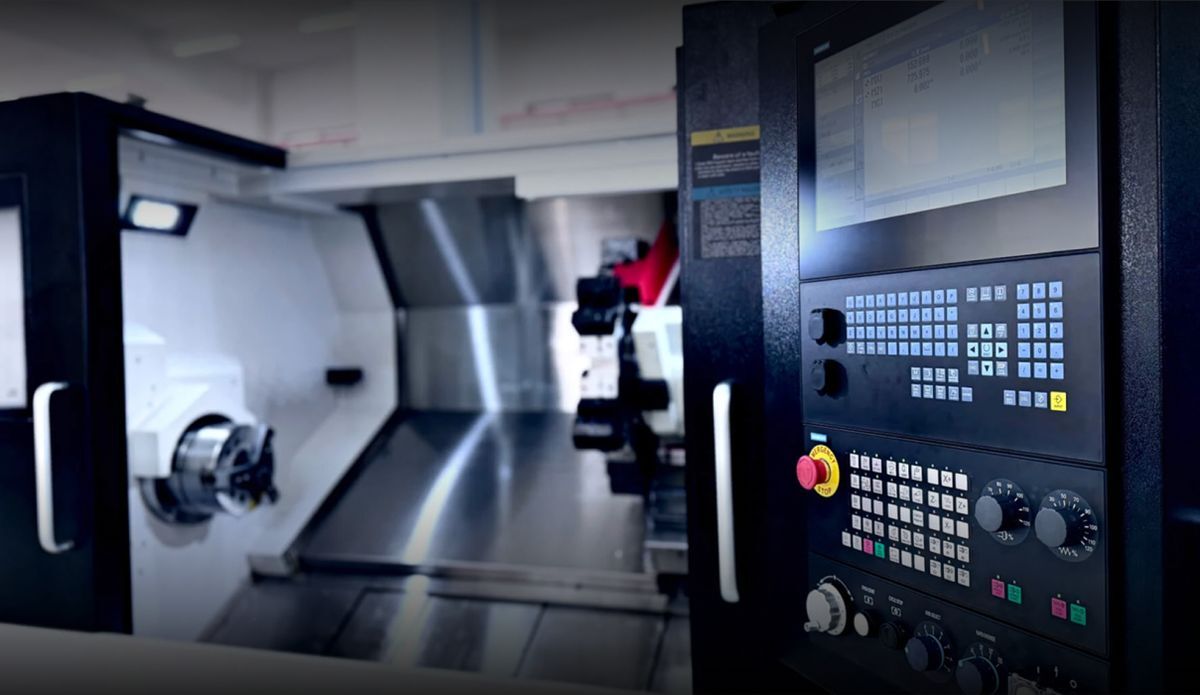

SYIL L4 je serijsko opremljen s Siemensovim krmilnim sistemom SINUMERIK 828D . Krmiljenje SINUMERIK 828D s svojo edinstveno zmogljivostjo CNC postavlja standarde produktivnosti pri rezkanju na strojih SYIL. Z novimi pogoni SINAMICS in motorji za krmiljenje gibanja SIMOTICS je SINUMERIK 828D zdaj še bolj produktiven. Robustna arhitektura strojne opreme in inteligentni krmilni algoritmi skupaj z visokokakovostno tehnologijo pogonov in motorjev zagotavljajo največjo dinamiko in natančnost med strojno obdelavo.

Zahtevajte ponudbo

Izboljšajte svojo natančno obdelavo s CNC stružnicami SYIL

Visokozmogljivi stružni centri serije SYIL L so zasnovani tako, da zagotavljajo neprimerljivo prilagodljivost nastavitev, izjemno togost in izjemno toplotno stabilnost. Ti stroji so vodilni v panogi glede razmerja med zmogljivostjo in ceno ter ponujajo neprekosljivo vrednost v svojem razredu.

Visoko produktivna stružnica

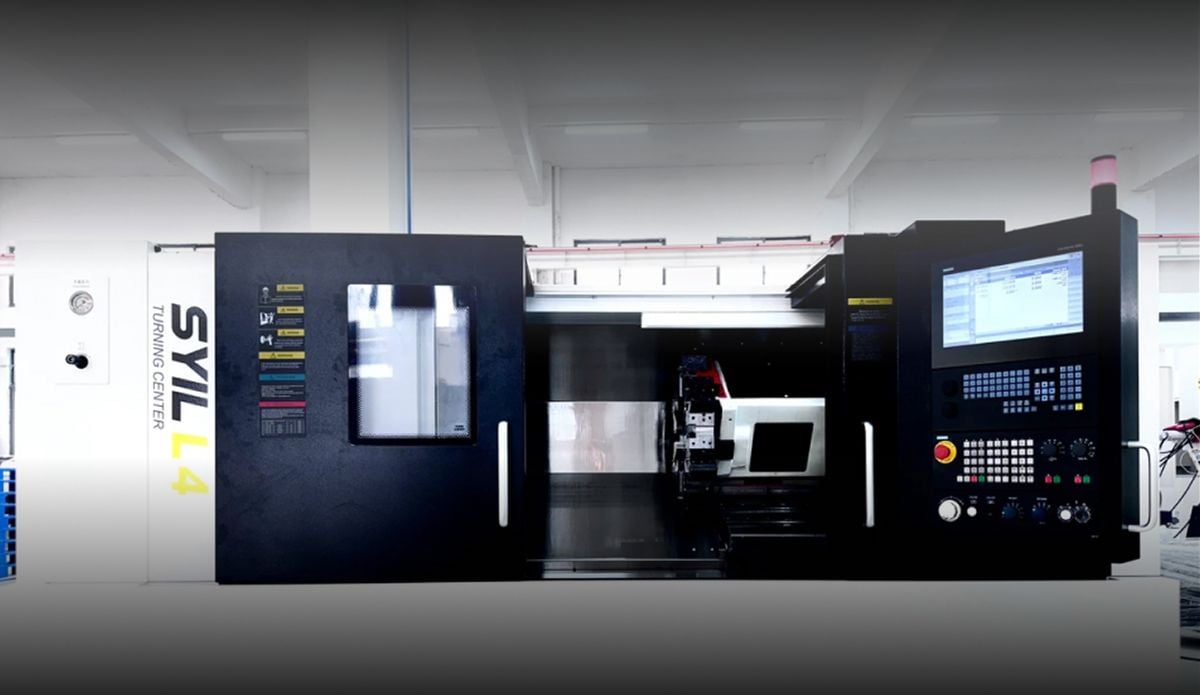

Stručni center SYIL L4: visokozmogljiva CNC obdelava velikih delov.



THK

Visoko natančni kroglični vijaki in linearna vodila

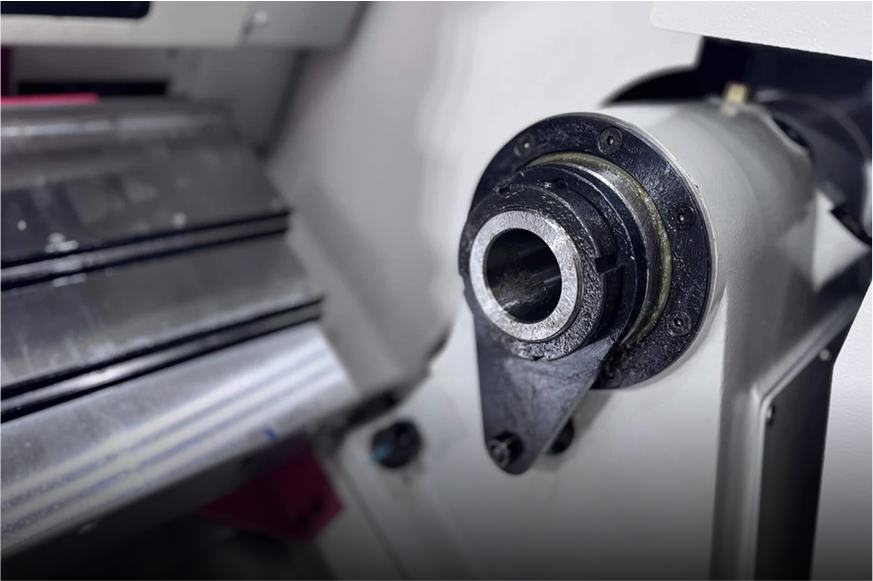

Izbirni servo revolver SAUTER

Hitrost vretena električnega orodja 5000 vrtljajev na minuto

Servo enota vretena z visoko hitrostjo

Največja hitrost vretena 4500 vrtljajev na minuto

SYIL L4 Options

Discover the versatile SYIL L4 mini mill, perfect for hobbyists and professionals. Compact design, high precision, and affordable pricing.

Get Pricing

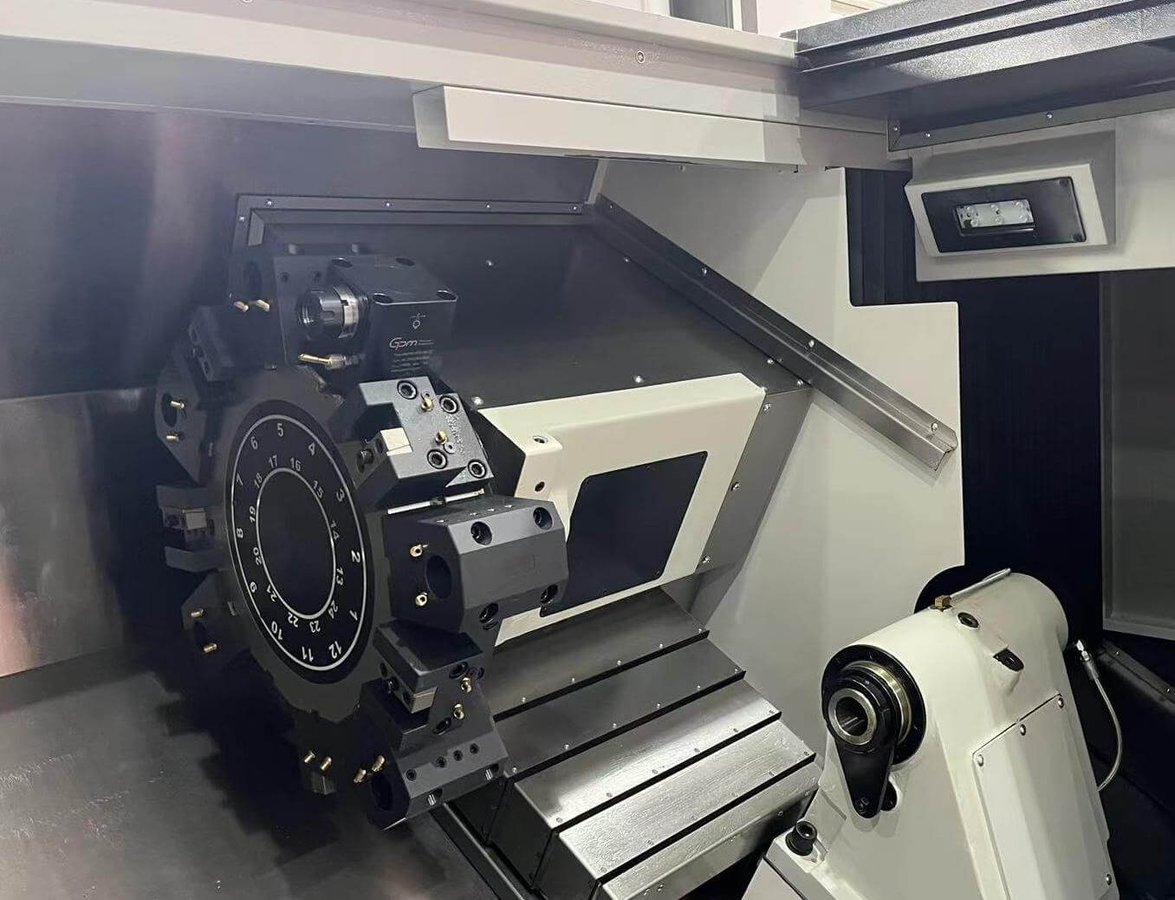

Power Turret

BMT65.

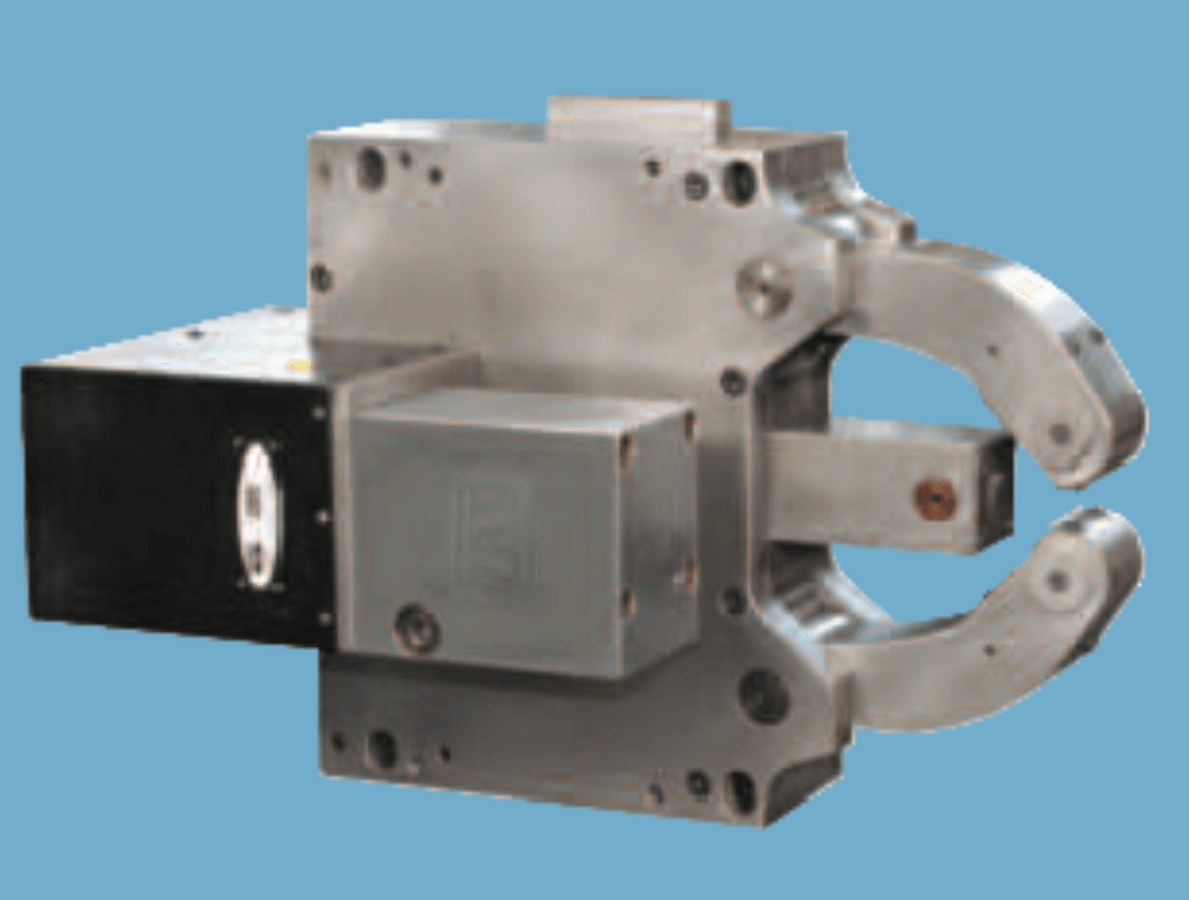

Center column

Steady Rest.

Technical Specifications

logo
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15 KW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530m
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chunk
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(Ｘ)
0.005mm
0.005mm
0.005mm
Position accuracy(Ｚ)
0.008mm
0.008mm
0.008mm
Repeat accuracy (Ｘ)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Ｚ)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
