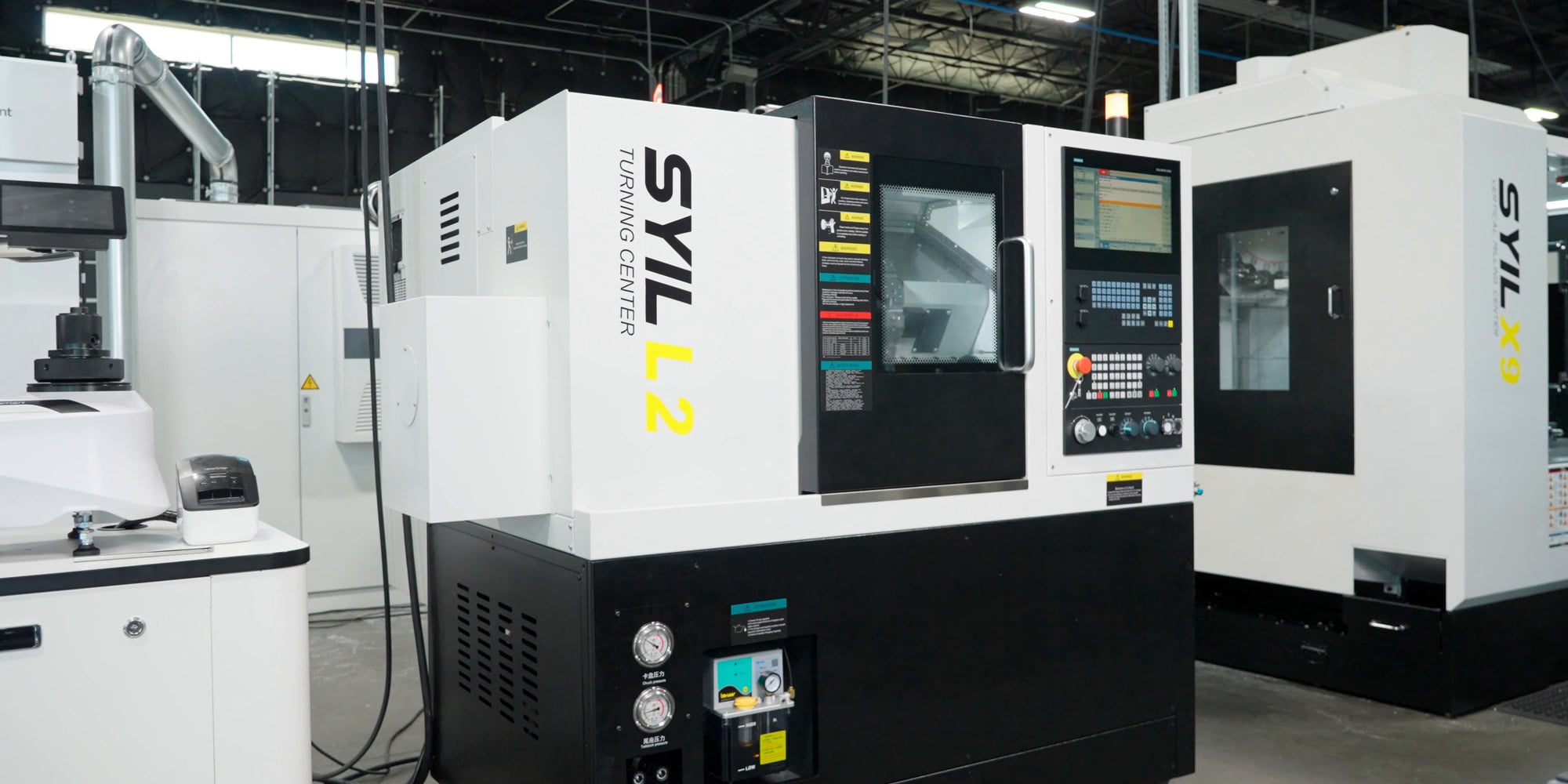

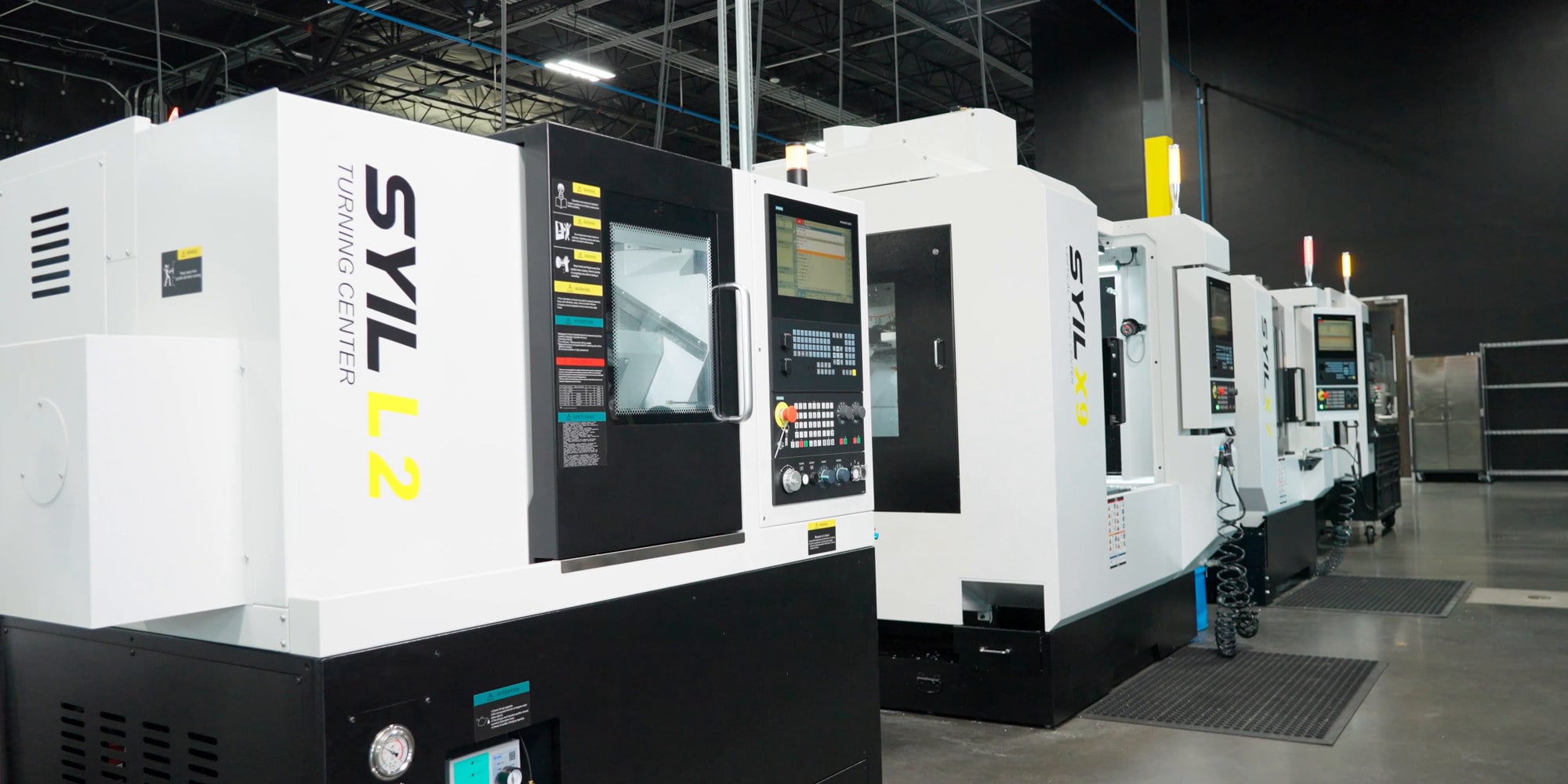

SYIL L2 CNC stružnica

Center za struženje za vašo trgovino

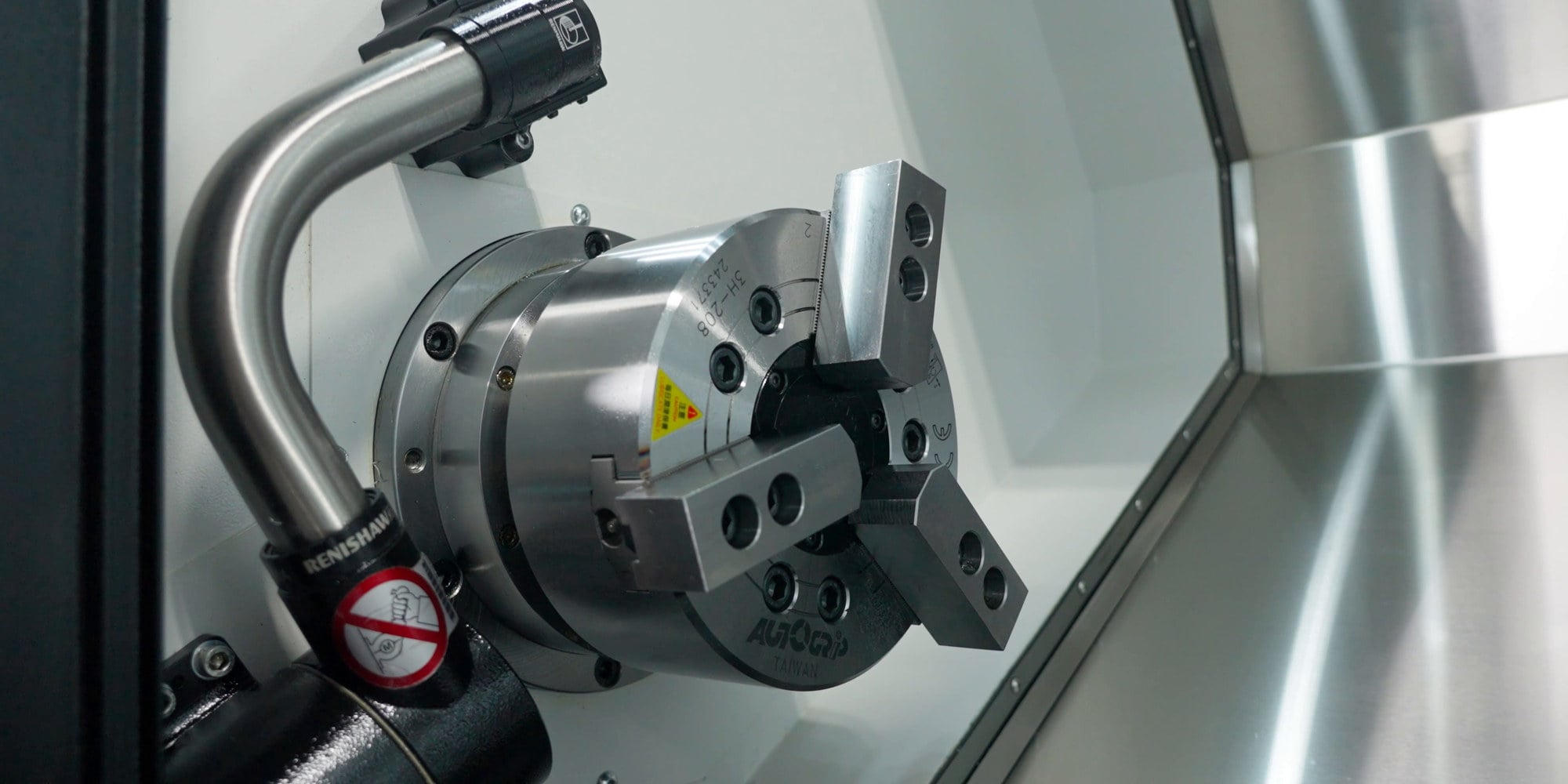

8-palčno hidravlično vpenjalno držalo
Največji premer obračanja ø510mm
Premer luknje ø66mm
12/8-položajni servo obračalnik za orodje
Kompaktni odtis

Zahtevajte ponudbo

Processing Capacity

Chuck size

8 inch

Max. swing diameter over bed

ø510 mm

Max. swing diameter over carriage

ø260 mm

Max. workpiece Length

300 mm

Max. work piece diameter

ø380 mm

Spindle

Max speed

4000 rpm

Spindle nose

A2-6

Spindle bore diameter

ø66 mm

Through spindle bore diameter

ø52 mm

Spindle power

11/15 kW

Tool Holder

Type

Servo turret

Tools

8/12

Tool shank size

25 x 25 / 20 x 20 mm

Tool shank diameter

ø40/ø32 mm

Travels

X Rapid traverse

30 m/min

Z Rapid traverse

30 m/min

X Travels

200 mm

Z Travels

360 mm

Accuracy

Finish turning cylindrical accuracy

IT6

Finish turning parts surface

Ra0.4-1.6

Finished turning parts roundness

≤0.003 mm

Position accuracy (Ｚ)

0.008 mm

Repeat accuracy (Ｘ)

0.002 mm

Repeat accuracy (Ｚ)

0.004 mm

Dimensions and Weight

Dimensions(LxWxH)

1775x1600x1690 mm

Weight:

3050 kg

SYIL L2 Turning Center Packages Specifikacije

Stružnice CNC SYIL L2 so zasnovane tako, da zagotavljajo neprimerljivo zmogljivost v maloserijski proizvodnji.

Zahtevajte ponudbo

SYIL x Siemens

SYIL L2 je serijsko opremljen s Siemensovim krmilnim sistemom SINUMERIK 828D . Krmiljenje SINUMERIK 828D s svojo edinstveno zmogljivostjo CNC postavlja standarde produktivnosti pri rezkanju na strojih SYIL. Z novimi pogoni SINAMICS in motorji za krmiljenje gibanja SIMOTICS je SINUMERIK 828D zdaj še bolj produktiven. Robustna arhitektura strojne opreme in inteligentni krmilni algoritmi skupaj z visokokakovostno tehnologijo pogonov in motorjev zagotavljajo največjo dinamiko in natančnost med strojno obdelavo.

Zahtevajte ponudbo

Odkrijte prednosti stružnic SYIL za proizvodnjo majhnih delov

SYIL L2 je zasnovan platformno in modularno, odlikujeta ga kompaktna zasnova in udoben delovni prostor z možnostjo razširitve.

Visoko zmogljivo struženje

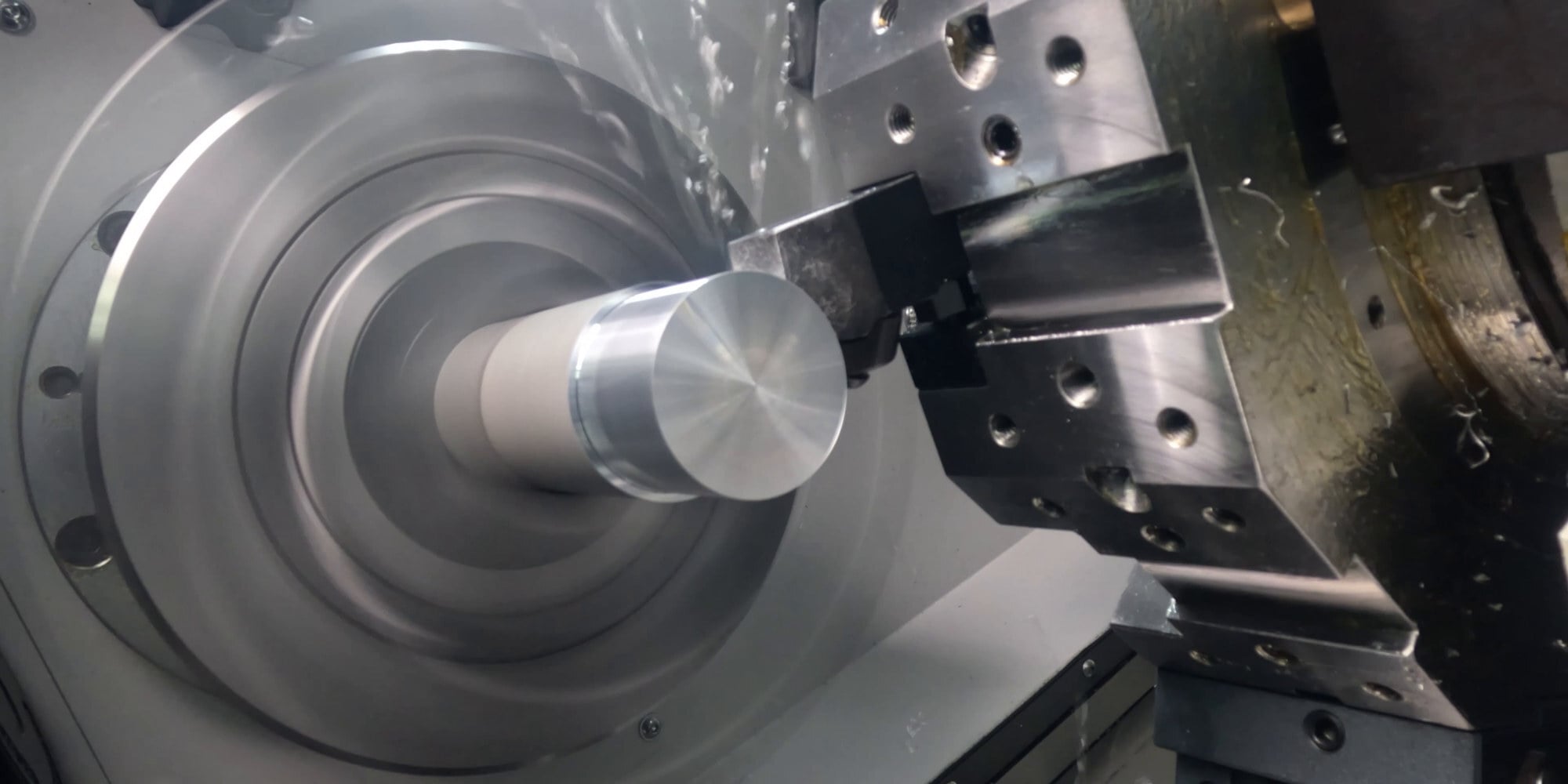

Pri stružilnih centrih SYIL lahko pričakujete vrhunsko natančnost in ponovljivost. Napredna tehnologija CNC zagotavlja, da je vsak rez natančen, kar omogoča izdelavo konsistentnih in visokokakovostnih delov. Ne glede na to, ali izdelujete prototipe ali majhne kovinske dele v velikih količinah, stružnice SYIL vsakič zagotavljajo izjemne rezultate.



THK

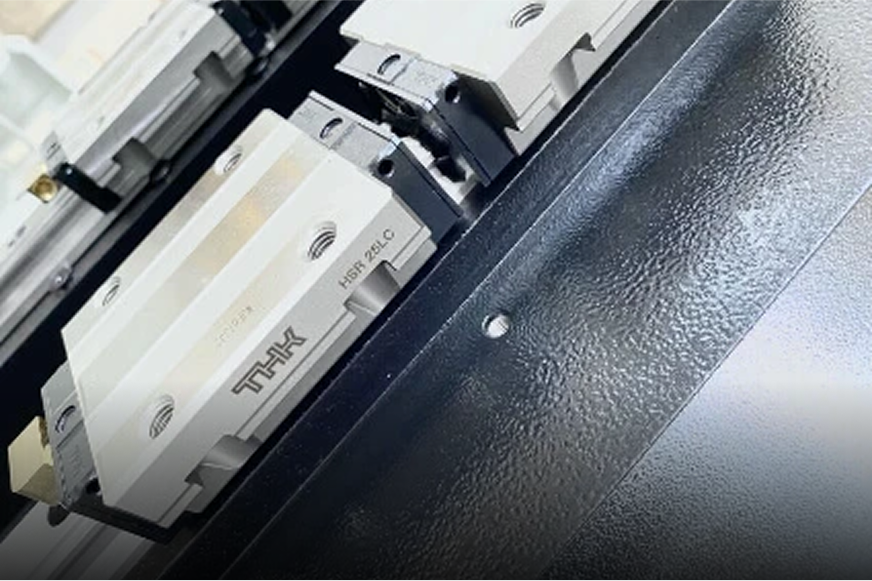

Visoko natančnikroglični vijaki in linearna vodila

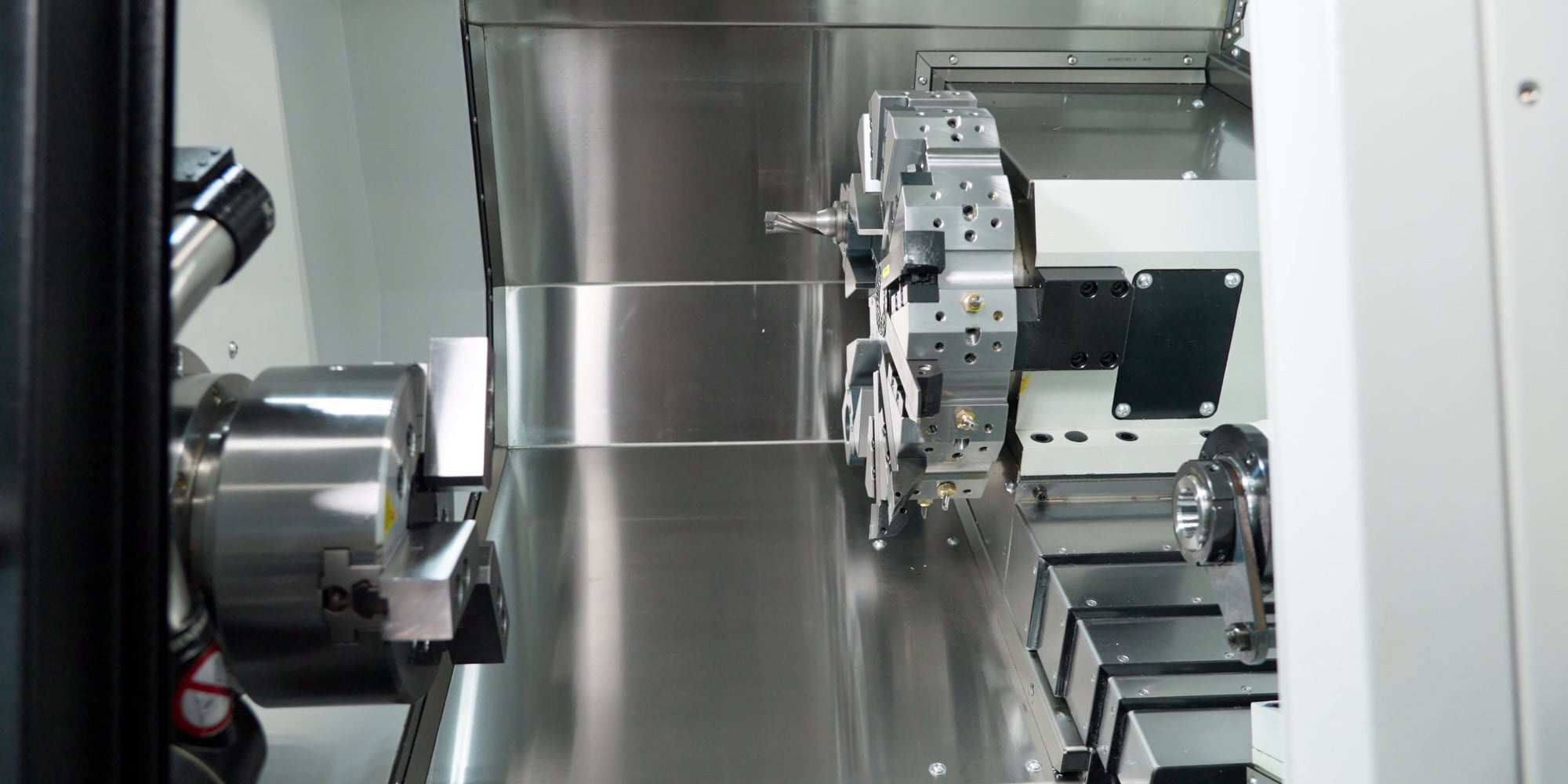

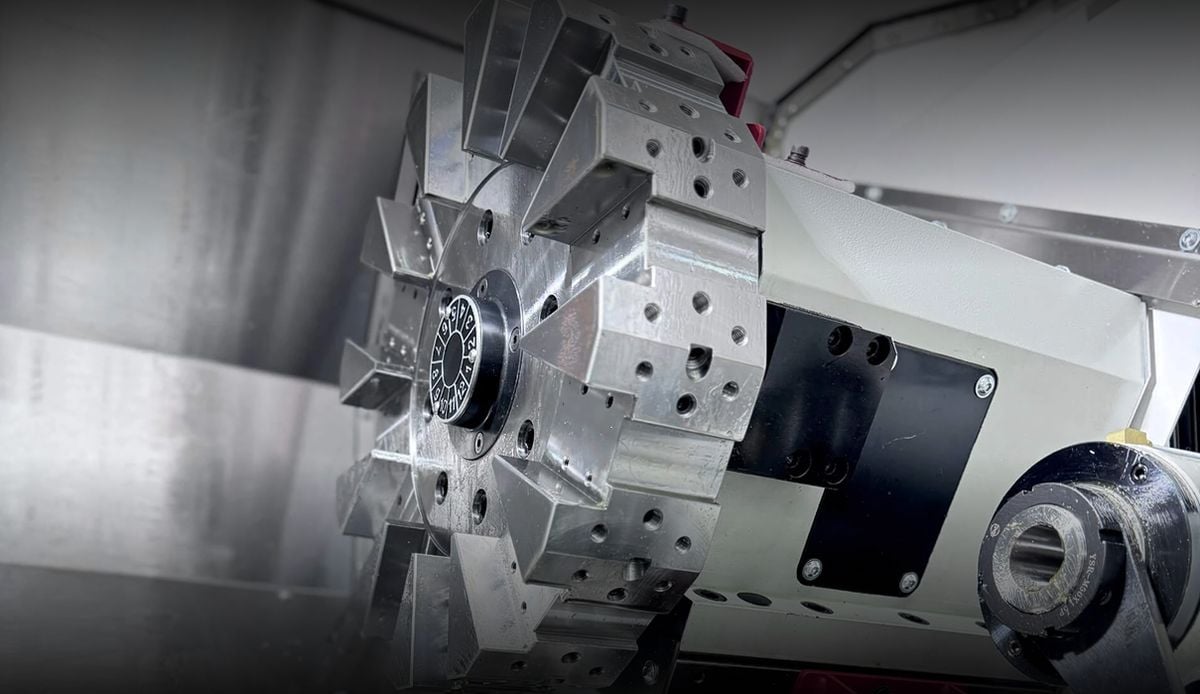

8/12-položajni sistem orodnih revolverjev

Trpežna orodna gred lahko vzdrži 70 kg tlaka hladilne tekočine

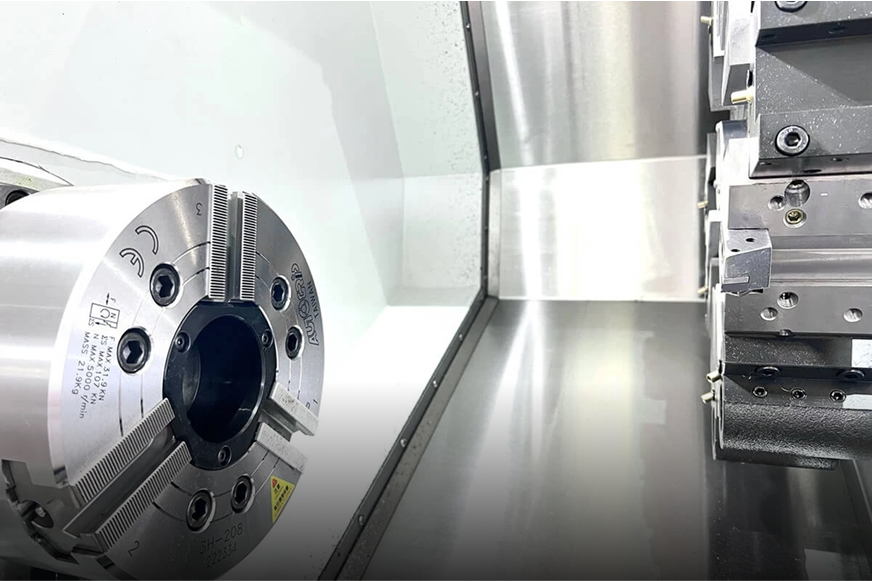

Servo enota vretena z visoko hitrostjo

Največja hitrost vretena 4000 vrtljajev na minuto

SYIL L2 Options

Discover the versatile SYIL L2 mini mill, perfect for hobbyists and professionals. Compact design, high precision, and affordable pricing.

Get Pricing

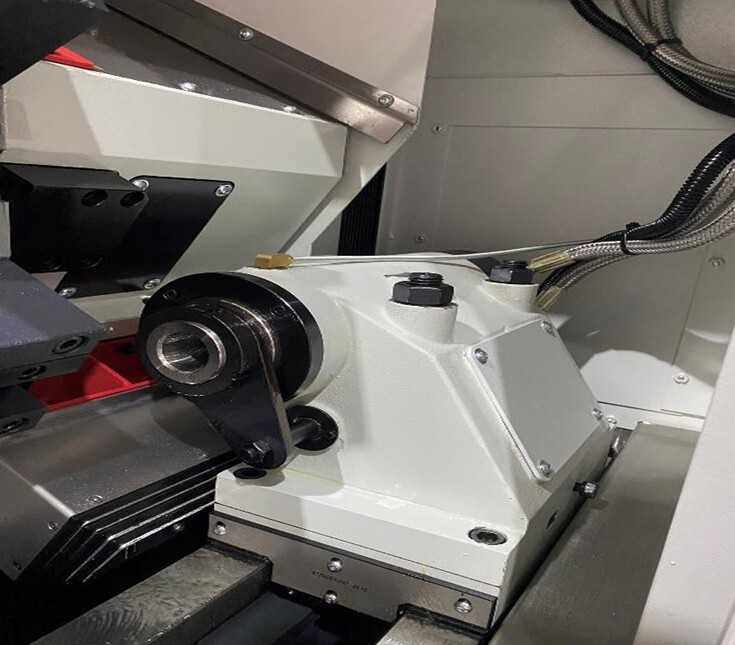

Hydraulic Tail Stock

Including Custom Screen for Tail Stock Movement.

Chip Conveyor

Including chip pickup trolley.

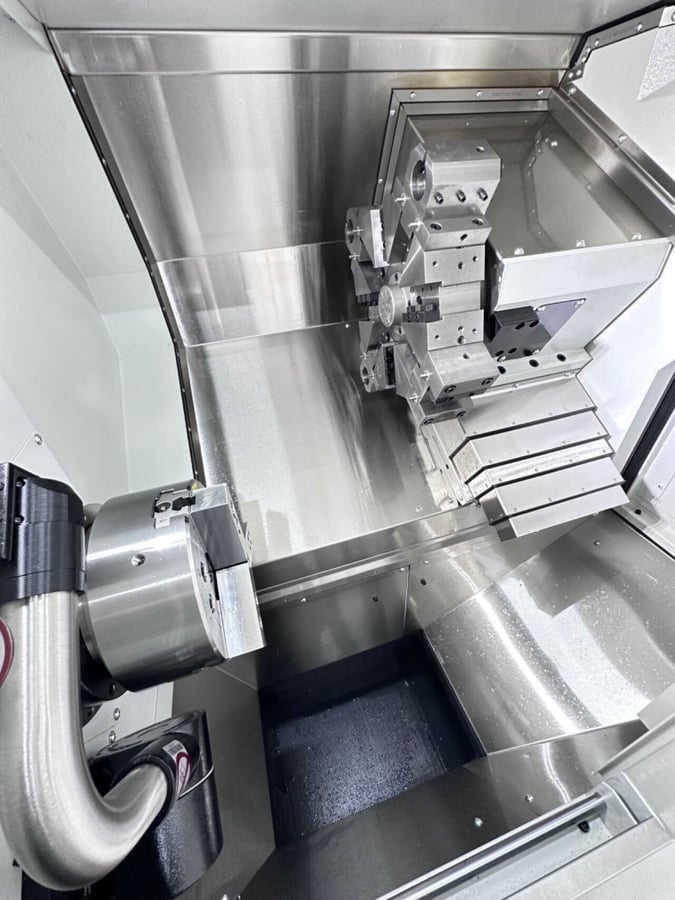

Tool Setter

Renishaw.

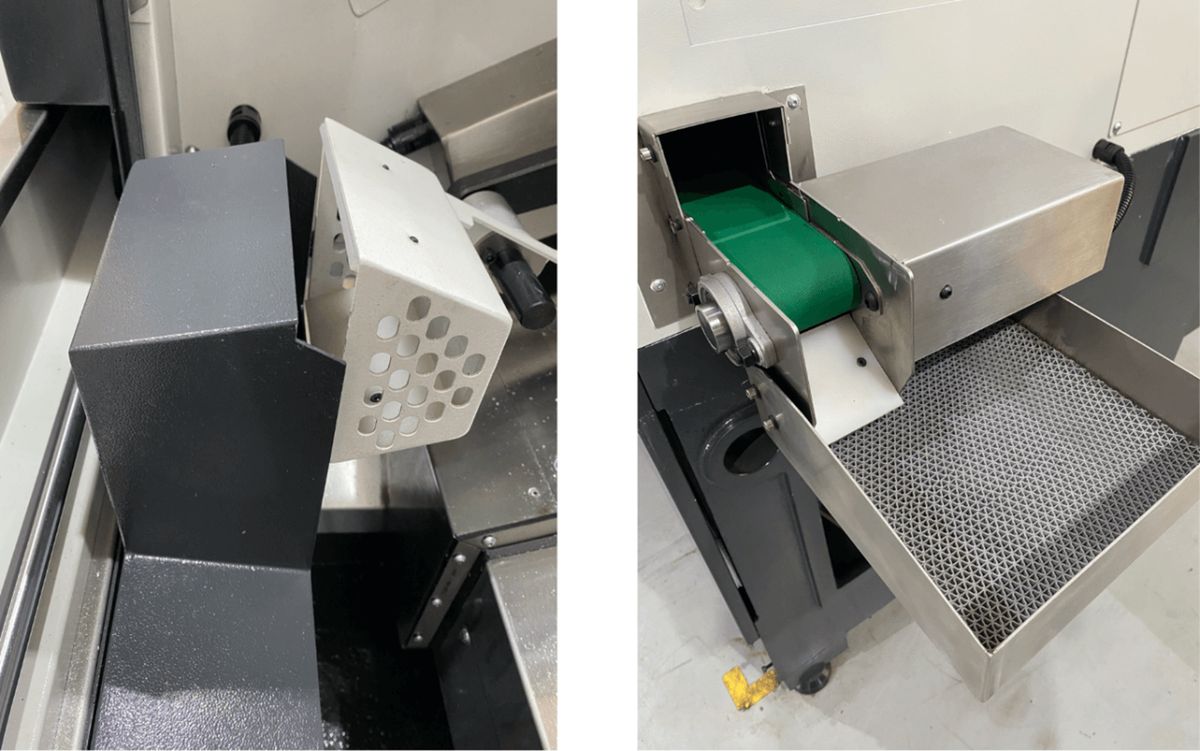

Parts Catcher

For L2.

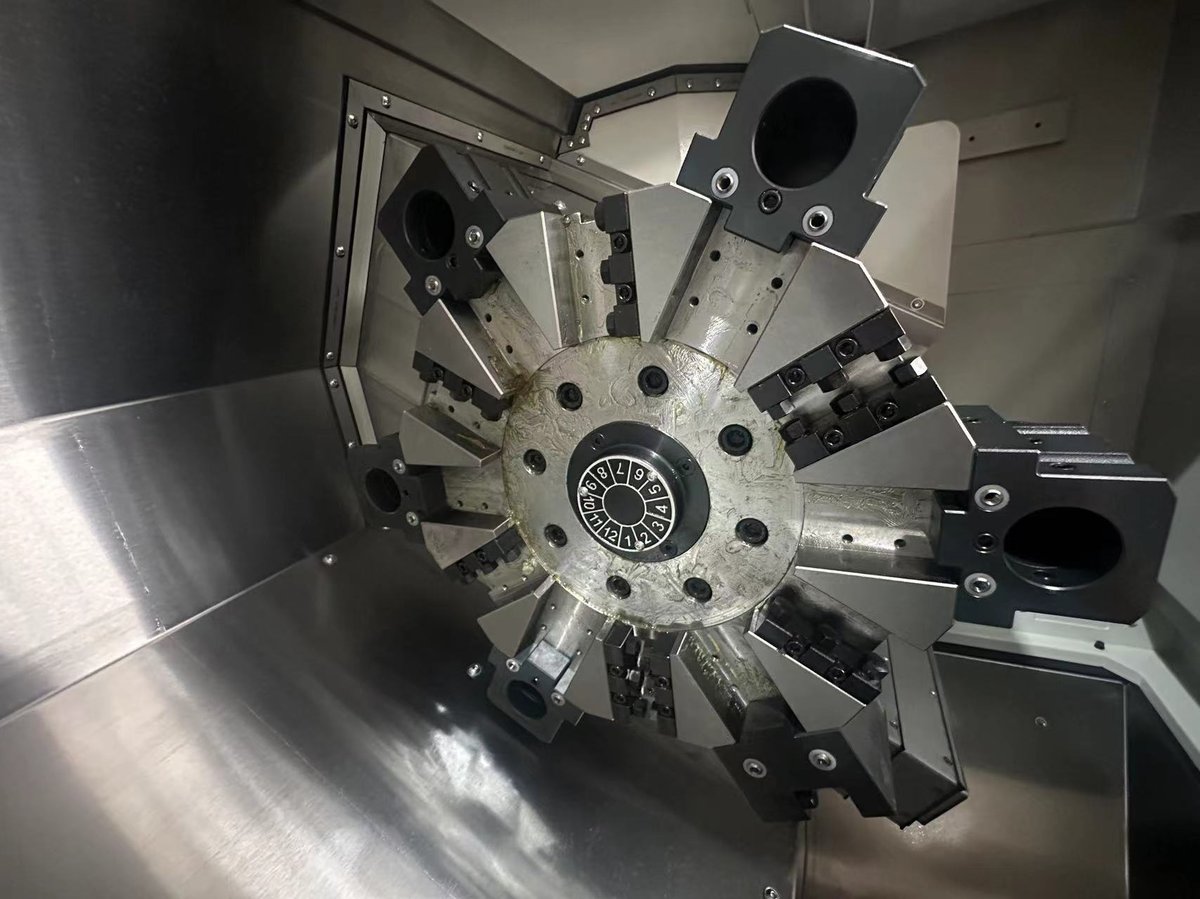

12 Tools Turret

25x25mm Block Type.

Technical Specifications

logo
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15 KW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530m
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chunk
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(Ｘ)
0.005mm
0.005mm
0.005mm
Position accuracy(Ｚ)
0.008mm
0.008mm
0.008mm
Repeat accuracy (Ｘ)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Ｚ)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
